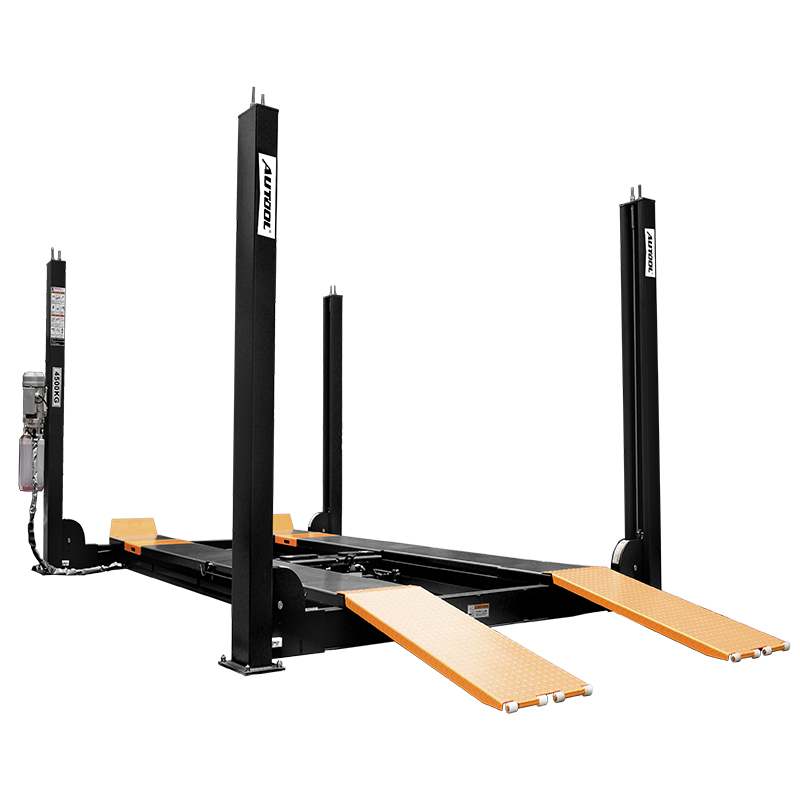

AUTOOL ATL-4.5F Four Post Lift

AUTOOL ATL-4.5FProduct OverviewThe AUTOOL ATL-4.5F Four Post Lift is a professional 4-post car hoist for wheel alignment and auto repair workshop lifting applications. It features precision-machined cylinder components, Japanese-made seals, a stable wire rope-driven electro-hydraulic system, and a shot-blasted high-temperature coated surface for long-term durability. With manual / automatic unlocking versions, 220V / 380V power options, a solid steel X-frame, wire rope breakage protection, and a standard auxiliary lifting trolley, it is designed for demanding professional workshop scenarios.4500kg Capacity Wheel Alignment 220V / 380V Options Secondary Lifting Trolley4500kgLifting Capacity1700mmMax. Lifting Height0.6-0.8MPaAir Source Pressure2.2kWMotor PowerKey FeaturesKey FeaturesATL-4.5F combines manual or automatic unlocking versions, a stable lifting structure, professional control system, wire rope safety protection, and an auxiliary lifting trolley for wheel alignment and repair work.Manual / Automatic UnlockingThe lift supports both manual and automatic unlocking versions. Automatic unlocking during descent is available on the automatic version for easier operation.Full Copper-Core MotorThe aluminum alloy motor housing includes a built-in full copper-core motor for reliable output and long-term workshop performance.Solid Steel X-Frame StructureThe robust solid steel X-shaped frame improves stability, support strength, and load-bearing performance during lifting operations.EU-Standard Control BoxThe fully automatic control box follows EU standards and supports safe, convenient operation for professional auto repair scenarios.Wire Rope Breakage ProtectionAn integrated wire rope breakage safety device helps reduce accident risk if abnormal wire rope failure occurs during use.Secondary Lifting Trolley IncludedAn EU-standard auxiliary lifting trolley is included as standard. It is fixed under load and easy to move when unloaded for ergonomic workshop use.SpecificationsAUTOOL ATL-4.5F SpecificationsThe image below contains the ATL-4.5F structure diagram, feature details, installation base requirements, platform dimensions, EU testing information, and product specification table.Lifting PerformanceLifting Capacity4500kgMin. Height210mmMax. Lifting Height1700mmSecondary Lifting Capacity2000kgSecondary Lifting Height480mmDimensions And PowerTotal Height2218mmInner Column Width2830mmAir Source Pressure0.6-0.8MPaMotor Power220V / 380V, 2.2kWStructure And ConfigurationLift TypeFour-post lift / 4-post car hoist for wheel alignmentUnlocking ModeManual and automatic unlocking; automatic unlocking during descent on the automatic versionDrive SystemWire rope-driven electro-hydraulic systemAuxiliary LiftEU-standard secondary lifting trolley included as standardOptional ControlIndustrial-grade wireless remote control available as an optional accessory Click to enlarge Lifting PerformanceLifting Capacity4500kgMin. Height210mmMax. Lifting Height1700mmSecondary Lifting Capacity2000kgSecondary Lifting Height480mm Dimensions And PowerTotal Height2218mmInner Column Width2830mmAir Source Pressure0.6-0.8MPaMotor Power220V / 380V, 2.2kW Structure And ConfigurationLift TypeFour-post lift / 4-post car hoist for wheel alignmentUnlocking ModeManual and automatic unlocking; automatic unlocking during descent on the automatic versionDrive SystemWire rope-driven electro-hydraulic systemAuxiliary LiftEU-standard secondary lifting trolley included as standardOptional ControlIndustrial-grade wireless remote control available as an optional accessory Before You Order And UseBefore You Order And UseFor a four-post lift, structure and safety systems are as important as lifting capacity. ATL-4.5F includes multiple safety and stability elements for professional workshop use.150% Static / 115% Dynamic TestThe product detail image shows EU testing standards with 150% static test and 115% dynamic test references for safety validation.Wire Rope Safety MechanismThe wire rope breakage protection mechanism is designed to prevent accidents and improve safety during abnormal wire rope conditions.Stable X-Frame ConstructionThe solid-core steel X-frame structure improves lift stability and load support during vehicle lifting and wheel alignment work.Manual / Automatic Unlocking During DescentThe automatic unlocking version improves convenience during descent while reducing the manual steps required during lift operation.Installation And SetupInstallation And SetupConfirm workshop floor, power, air source, and space conditions before ordering and installation.Concrete FoundationThe concrete base for lift installation should be more than 500mm thick and level. Confirm workshop floor conditions before installation.Power ConfirmationConfirm the available power supply before ordering. The product data lists 220V / 380V power options with 2.2kW motor power.Air Source ConfirmationConfirm air source pressure before installation. ATL-4.5F requires 0.6-0.8MPa air source pressure.Workshop SpaceConfirm workshop space according to platform length, inner column width, total height, vehicle size, and wheel alignment workflow requirements.What Is In The BoxWhat Is In The BoxThe current source content provides package dimensions and weight. No dedicated Packing List image is provided, so this module uses compact text cards only.Package Dimensions454 × 71 × 85 cmPackage Weight1228 KGBefore You Order And UseBefore You Order And UseReview installation, power, air source, platform length, optional remote, and inspection requirements before purchasing this four-post lift.Purchase And Installation NotesConfirm workshop floor conditions before installation.The concrete base should be more than 500mm thick and level.Confirm available power supply before ordering: 220V / 380V power options are shown in the product data.Confirm air source pressure: 0.6-0.8MPa.Confirm workshop space according to platform length, inner column width, total height, and vehicle size.The 4.5-ton model comes with a 4.5m standard length.Effective load length can be adjusted by changing the platform width based on different vehicle models.Optional industrial-grade wireless remote control is available if additional operation convenience is needed.Professional installation and routine safety inspection are recommended.Before use, confirm that unlocking, lifting, secondary lifting trolley, and wire rope safety mechanisms are functioning properly.Questions And AnswersThese answers cover lifting capacity, wheel alignment use, 220V / 380V power options, unlocking system, secondary lifting trolley, foundation requirement, and package size before ordering. What Is The Lifting Capacity Of ATL-4.5F? The ATL-4.5F lifting capacity is 4500kg. Is ATL-4.5F Suitable For Wheel Alignment? Yes. ATL-4.5F is positioned as a four-post car hoist for wheel alignment and professional workshop lifting applications. What Is The Required Air Source Pressure? The required air source pressure is 0.6-0.8MPa. What Power Options Are Shown For The Motor? The product data shows 220V / 380V power options with 2.2kW motor power. Does ATL-4.5F Support Manual / Automatic Unlocking? Yes. ATL-4.5F supports both manual and automatic unlocking modes, and automatic unlocking is available during descent on the automatic version. Is A Secondary Lifting Trolley Included? Yes. The product data shows a standard EU-standard secondary lifting trolley included with the ATL-4.5F. What Is The Installation Foundation Requirement? The concrete base for lift installation should be more than 500mm thick and level. Confirm workshop floor conditions before installation. What Are The Package Dimensions And Weight? Package dimensions are 454 × 71 × 85 cm, and package weight is 1228 KG.Warranty And ContactWarranty And ContactFor ATL-4.5F model confirmation, manual / automatic unlocking selection, 220V / 380V power options, installation foundation requirements, air source pressure, workshop space, package shipping, optional wireless remote, or wheel alignment application questions, contact AUTOOL Store before ordering.Confirm Before OrderingUse support if you need help confirming floor thickness, leveling requirements, motor voltage, air pressure, workshop layout, platform length, secondary lifting trolley configuration, shipping conditions, or optional wireless remote control.Installation foundation and workshop floor confirmation220V / 380V power option confirmation0.6-0.8MPa air source pressure confirmationWorkshop space and vehicle size confirmationPackage dimensions and shipping weight confirmationOptional industrial-grade wireless remote supportWheel alignment and professional workshop application supportEmail Support[email protected] WhatsApp Support 86 189 2647 7404
