AUTOOL ATL-4D Two Post Car Lift 4000KG Load Capacity

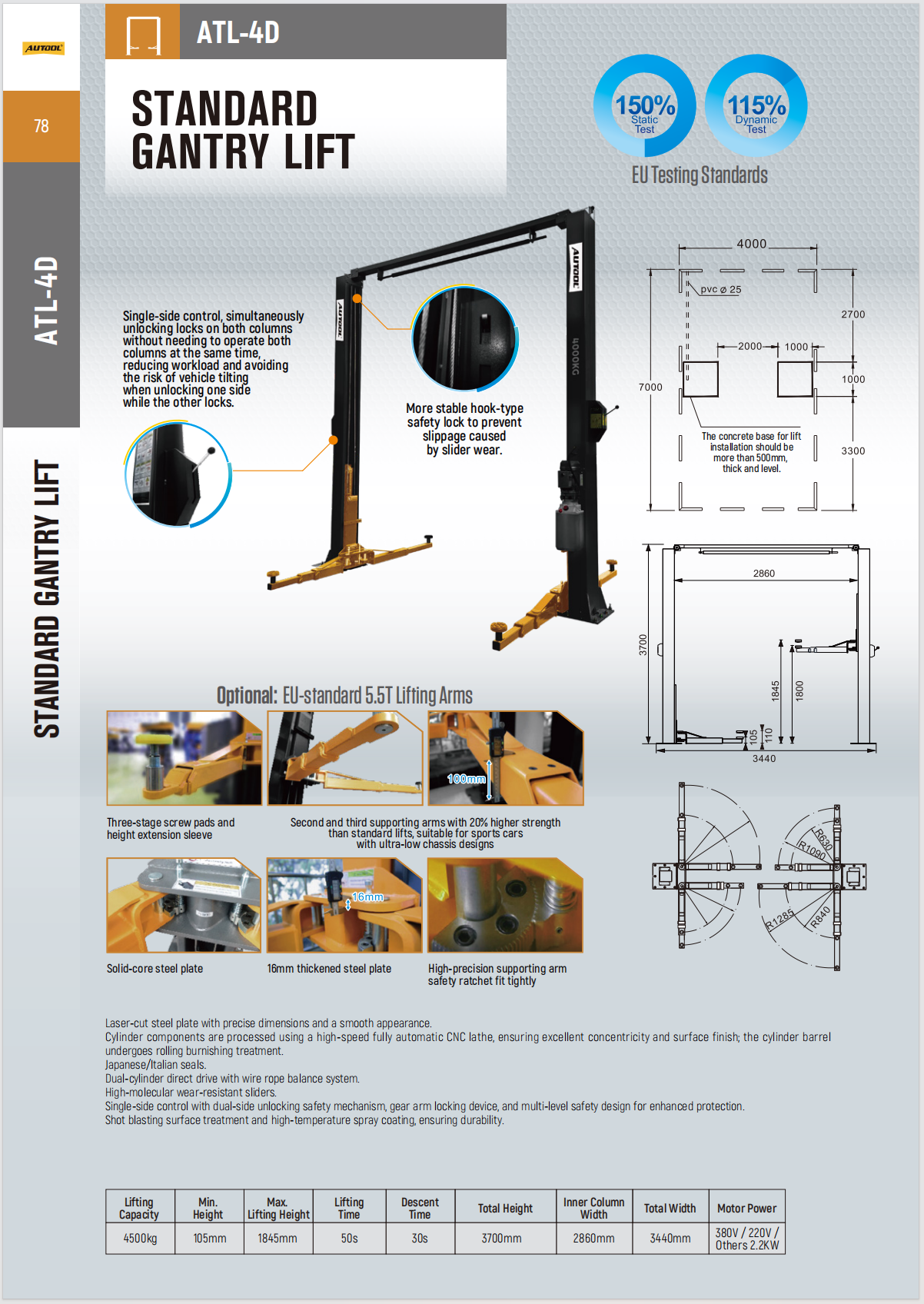

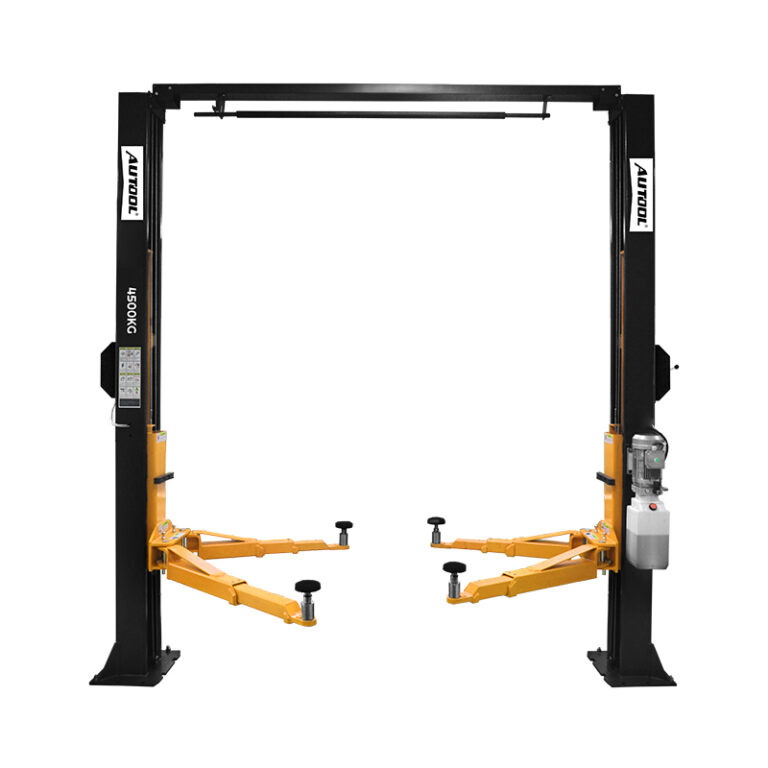

AUTOOL ATL-4DProduct OverviewThe AUTOOL ATL-4D two post car lift is a standard gantry lift designed for professional workshop vehicle lifting. It features single-side control, allowing the operator to unlock both columns at the same time from one side. This makes operation faster and simpler, while reducing the risk of vehicle tilting caused by unsafe or unsynchronized unlocking.The ATL-4D frame uses strong steel tubing and laser-precision steel plates. Its chainless dual-cylinder direct-drive hydraulic system, synchronized steel cable balance mechanism, precision hydraulic components, Japanese or Italian seals, and wear-resistant slide blocks support smooth, quiet, stable, and long-lasting performance for SUVs, vans, pickups, and light trucks.Single-Side Control Dual-Cylinder Drive Mechanical Safety Lock Workshop Lift4500kgImage Listed Capacity1845mmMax Lift Height3700mmTotal Height2.2KWMotor PowerKey FeaturesKey FeaturesATL-4D combines steel structure manufacturing, direct hydraulic drive, synchronized lifting, precision cylinder machining, premium sealing, and low-noise slide blocks for professional workshop use.Single-Side ControlOperate from one column side to unlock both columns at the same time. This simplifies operation and reduces the risk of vehicle tilt caused by single-side misoperation or unsynchronized unlocking.Dual-Cylinder Direct DriveThe chainless dual-cylinder direct-drive hydraulic system transfers lifting force through hydraulic cylinders, reducing chain wear risk and improving long-term reliability.Steel Cable Balance SystemA synchronized steel cable balance mechanism helps both columns lift evenly and maintain stable movement through the lifting process.Precision Steel StructureLaser-cut steel plates, strong steel tubing, shot blasting, and high-temperature coating help improve assembly accuracy, corrosion resistance, scratch resistance, and durability.CNC-Machined Hydraulic CylindersKey hydraulic cylinder components are machined with fully automated CNC lathes, while cylinder barrel inner walls use roller burnishing to reduce friction and extend service life.Wear-Resistant Slide BlocksPolymer composite self-lubricating slide blocks reduce metal-to-metal friction, lower operation noise during long-term load lifting, and simplify future maintenance.Before You Order And UseBefore You Order And UseATL-4D integrates mechanical locking, synchronized release, electrical interlock logic, and tested structural protection to support safer vehicle lifting in workshop environments.Simultaneous Mechanical Lock ReleaseSingle-side control releases the safety locks on both columns at the same time, reducing operational complexity and misoperation risk.Rack-And-Pinion Mechanical LockingMechanical rack-and-pinion locking devices work with the electrical system to provide stable backup protection at selected lift heights.Hook-Type Safety LockThe technical image highlights a more stable hook-type safety lock designed to help prevent slippage caused by slider wear.EU Testing Standards ReferenceThe technical image lists 150% static test and 115% dynamic test references under EU testing standards.SpecificationsSpecificationsThe technical image is the main visual data source for ATL-4D. It includes the standard gantry lift structure, single-side control explanation, hook-type safety lock, optional EU-standard 5.5T lifting arms, floor layout, overall dimensions, arm swing radius, and the parameter table.Technical Data From ImageModelATL-4DLift TypeStandard gantry liftLifting Capacity4500kg shown in the technical imageMinimum Height105mmMaximum Lifting Height1845mmLifting Time50sDescent Time30sTotal Height3700mmInner Column Width2860mmTotal Width3440mmMotor Power380V / 220V / Others, 2.2KWCapacity Confirmation RequiredThe source title mentions 4000KG load capacity, while the technical image lists 4500kg lifting capacity.Confirm the final rated lifting capacity before publishing, ordering, or quoting. Click to enlargeInstallation And SetupInstallation And SetupBefore ordering or installation, confirm floor condition, ceiling height, column spacing, arm swing clearance, motor voltage, and the target vehicle types.Concrete RequirementThe technical image states that the concrete base for lift installation should be more than 500mm thick and level.Column LayoutUse the technical drawing to confirm floor space, column spacing, total width, and vehicle access before installation.Arm Swing ClearanceCheck the arm radius diagram before installation to ensure the lift can serve the target vehicle types safely and efficiently.Power ConfirmationConfirm 380V / 220V / other motor power configuration before ordering to match the workshop electrical environment.Before You Order And UseBefore You Order And UseATL-4D is an inquiry-based workshop lift. Confirm optional arms, electronic unlocking, voltage, floor condition, and installation details before ordering.Optional EU-Standard 5.5T Lifting ArmsThe technical image shows optional EU-standard 5.5T lifting arms. Confirm whether this option is included or needs to be purchased separately before ordering.Electronic Unlocking ConsultationFor ATL-4D, ATL-4.5D, and ATL-4.5DW models that require an additional budget for electronic unlocking, contact AUTOOL Store for consultation.Voltage ConfigurationConfirm whether the workshop requires 380V, 220V, or another motor power configuration before placing the order.Workshop Fit CheckConfirm floor size, ceiling height, target vehicle size, installation base, lifting capacity, and arm swing clearance before purchase.What Is In The BoxWhat Is In The BoxNo dedicated Packing List image is available in the provided content. The technical data image is not used here because Packing List should only use the most relevant package image when one exists.Main And Auxiliary UnitsSource package size: 383 × 44 × 72, weight 671 kg. Dimension unit requires final confirmation before publishing.Electrical Control BoxSource package size: 83 × 28 × 31, weight 20 kg. Dimension unit requires final confirmation before publishing.Accessories BoxSource package size: 40 × 40 × 25, weight 15 kg. Dimension unit requires final confirmation before publishing.Before You Order And UseBefore You Order And UseATL-4D is a large workshop lift. Confirm capacity, installation base, motor voltage, optional configurations, and package dimension units before quotation and installation.Order And Installation NotesConfirm the final rated lifting capacity before publishing, because the source title says 4000KG while the technical image lists 4500kg.Confirm whether the Packing List dimensions use cm or mm before publishing.Confirm motor voltage configuration: 380V / 220V / other options.The concrete base for lift installation should be more than 500mm thick and level according to the technical image.Confirm ceiling height, column spacing, total width, arm swing clearance, and vehicle size before installation.Optional EU-standard 5.5T lifting arms are shown in the technical image and should be confirmed before ordering.ATL-4D, ATL-4.5D, and ATL-4.5DW models requiring electronic unlocking may need additional budget; contact AUTOOL Store for consultation.Professional installation and safe operation procedures are required for two-post car lifts.Questions And AnswersThese answers cover rated capacity confirmation, suitable vehicles, single-side control, mechanical safety locking, installation base, motor power, optional 5.5T lifting arms, and electronic unlocking consultation. What Is The Rated Lifting Capacity Of ATL-4D? The source title mentions 4000KG load capacity, while the technical image lists 4500kg lifting capacity. Please confirm the final rated capacity before publishing or ordering. What Vehicles Can ATL-4D Lift? ATL-4D is designed for SUVs, vans, pickups, and light trucks, provided that the vehicle weight, lift arm position, and workshop installation conditions match the lift requirements. What Is Single-Side Control? Single-side control allows the operator to unlock both columns from one side at the same time, simplifying operation and reducing the risk of uneven unlocking. What Is The Main Safety Lock Design? ATL-4D uses mechanical locking protection. The technical image also highlights a more stable hook-type safety lock designed to reduce slippage risk caused by slider wear. What Installation Base Is Required? The technical image states that the concrete base for lift installation should be more than 500mm thick and level. What Motor Power Does ATL-4D Use? The technical image lists motor power as 380V / 220V / Others, 2.2KW. Confirm the correct voltage configuration before ordering. Are 5.5T Lifting Arms Included? The technical image shows optional EU-standard 5.5T lifting arms. Confirm whether this option is included or needs to be purchased separately before ordering. Does Electronic Unlocking Require Extra Budget? For ATL-4D, ATL-4.5D, and ATL-4.5DW models that require electronic unlocking, additional budget may be needed. Contact AUTOOL Store for consultation.Warranty And ContactWarranty And ContactFor ATL-4D lifting capacity confirmation, voltage configuration, installation size, floor requirement, optional 5.5T lifting arms, electronic unlocking budget, packing dimension units, or professional installation support, contact AUTOOL Store before ordering.Pre-Sales And Lift Configuration SupportATL-4D is a professional workshop lift and should be confirmed before quotation and installation. Use support to verify lifting capacity, power configuration, foundation requirements, optional arms, electronic unlocking, and packing details.ATL-4D lifting capacity confirmationVoltage configuration confirmationInstallation size and floor requirement confirmationOptional 5.5T lifting arm confirmationElectronic unlocking budget consultationPacking dimension unit confirmationProfessional installation supportEmail Support[email protected] WhatsApp Inquiry 86 189 2647 7404
