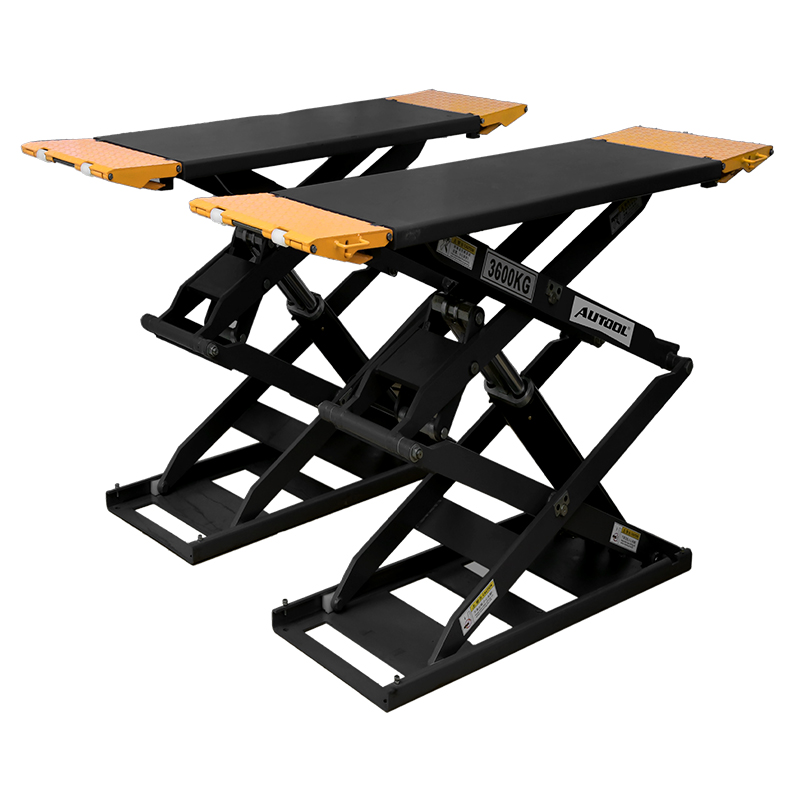

AUTOOL ATL-4SM ATL-3SM Low-profile Mobile Garage Scissor Lift

AUTOOL ATL-4SM / ATL-3SMProduct OverviewThe AUTOOL ATL-4SM and ATL-3SM are low-profile mobile garage scissor lifts designed for easy, stable, and safe vehicle lifting in compact garages, repair shops, and workshop spaces. Both models use a low 105mm starting height, sturdy hydraulic lifting structure, mechanical safety lock, and mobile-friendly scissor lift design. ATL-4SM is better for larger, heavier, or long-wheelbase vehicles, while ATL-3SM is better for medium to smaller vehicles and tighter spaces.Low 105mm Initial Height Mobile Scissor Lift 3T / 4T Model Options Mechanical Safety Lock4000kgATL-4SM Capacity3000kgATL-3SM Capacity105mmInitial Height0.4-0.6MPaAir Source PressureConfiguration ReminderThe standard version uses pneumatic unlocking; electric unlocking is available as an optional customization.Movable approach ramps can be selected as an upgrade and should be confirmed before ordering.Confirm vehicle weight, wheelbase, platform size, voltage, unlock type, and shipping details before purchase.How To ChooseHow To ChooseATL-4SM and ATL-3SM share a similar low-profile mobile scissor lift structure, but they are built for different vehicle weights, lifting heights, platform sizes, and workshop space needs.Need Higher Lifting Capacity?Choose ATL-4SM if you need up to 4000kg lifting capacity for larger, heavier, or long-wheelbase vehicles.Need A More Compact Lift?Choose ATL-3SM if you mainly service medium or smaller vehicles and need a narrower 460mm platform width for tighter spaces.Need More Lifting Height?ATL-4SM lifts up to 1250mm, while ATL-3SM lifts up to 1000mm. Choose according to your service height requirement.Need Longer Platform Coverage?ATL-4SM offers a 1570-2175mm platform length, while ATL-3SM offers a 1410-2010mm platform length.Servicing Low-Clearance Vehicles?Both models start from 105mm and can be directly installed on the ground, helping low-clearance vehicles drive on and off more easily.Need Optional Ramp Support?Movable approach ramps can be selected as an upgrade to extend platform coverage for longer-wheelbase or low-clearance vehicles.Product ComparisonProduct ComparisonCompare lifting capacity, lifting height, platform length, platform width, motor power, and air source pressure before choosing the right low-profile mobile garage scissor lift.ATL-4SM Focus4000kg lifting capacity, 1250mm lifting height, 1570-2175mm platform length, and 535mm platform width for larger or heavier vehicles.ATL-3SM Focus3000kg lifting capacity, 1000mm lifting height, 1410-2010mm platform length, and 460mm platform width for medium or smaller vehicles.Shared DesignBoth models use a 105mm initial height, 3KW motor power options, 0.4-0.6MPa air source pressure, low-profile ground installation, and mechanical safety locking structure.Decision CheckConfirm vehicle weight, wheelbase, working height, platform size, voltage, unlock type, ramp configuration, and workshop space before ordering. Click to enlargeSpecificationsAUTOOL ATL-4SM / ATL-3SM Product SpecificationsThe ATL-4SM and ATL-3SM differ mainly in lifting capacity, lifting height, platform length, and platform width. Both models use 105mm initial height, 3KW motor power options, and 0.4-0.6MPa air source pressure.Model SpecificationsSpecificationATL-4SMATL-3SMLifting Capacity4000kg3000kgLifting Height1250mm1000mmPlatform Length1570-2175mm1410-2010mmPlatform Width535mm460mmInitial Height105mm105mmMotor Power380V / 220V / Others 3KW380V / 220V / Others 3KWAir Source Pressure0.4-0.6MPa0.4-0.6MPa ATL-4SM SpecificationsLifting Capacity4000kgLifting Height1250mmPlatform Length1570-2175mmPlatform Width535mmInitial Height105mmMotor Power380V / 220V / Others 3KWAir Source Pressure0.4-0.6MPa ATL-3SM SpecificationsLifting Capacity3000kgLifting Height1000mmPlatform Length1410-2010mmPlatform Width460mmInitial Height105mmMotor Power380V / 220V / Others 3KWAir Source Pressure0.4-0.6MPa Key FeaturesKey FeaturesATL-4SM and ATL-3SM combine low-profile ground installation, hydraulic stability, mechanical safety locking, durable surface treatment, and optional configurations for different workshop requirements.Low Initial Height DesignThe lift can be directly installed on the ground with a starting height of only 105mm, making it easier for vehicles with low clearance to drive on and off.Mechanical Safety LockThe mechanical lock automatically locks during ascent and helps prevent accidental lowering, supporting safer and more reliable lifting operation.Pneumatic Unlocking StandardThe standard version features pneumatic unlocking. Electric unlocking is available as an optional customization and should be confirmed before ordering.Optional Movable Approach RampsMovable approach ramps can be used as extension plates for more long-wheelbase vehicles. This is an optional upgrade, not a default standard feature.Thicker Oil CylinderThe thicker oil cylinder helps improve lifting stability and durability during regular garage and workshop service.Imported Japanese / Italian SealsImported Japanese and Italian seals help improve hydraulic sealing performance and support a longer service life.Wear-Resistant BearingsAll moving joints are equipped with self-lubricating bearings. Regular lubrication and maintenance help extend service life.Shot Blasting And Powder CoatingShot blasting and powder-coated surface treatment help improve corrosion resistance, appearance, and long-term durability.Central Connecting RodThe central connecting rod helps synchronize both scissor arms, improving lifting stability and operation safety.Before You Order And UseBefore You Order And UseBecause lift configuration affects installation, operation, and shipping, confirm the final model, voltage, unlock method, ramp configuration, and vehicle compatibility before placing an order.Pneumatic Or Electric UnlockThe standard version uses pneumatic unlocking. Electric unlocking is available as an optional customization. Contact support to confirm availability and final configuration.Movable Ramp UpgradeMovable approach ramps can extend platform use for longer-wheelbase vehicles. The standard version does not include this feature, so confirm whether you need the upgrade.Power ConfigurationBoth models support 380V / 220V / other voltage options with 3KW motor power. Confirm your required voltage before ordering.Air Source RequirementBoth ATL-4SM and ATL-3SM require 0.4-0.6MPa air source pressure. Confirm your workshop air supply before installation.Vehicle Fit CheckConfirm vehicle weight, ground clearance, wheelbase, and platform contact area before choosing ATL-4SM or ATL-3SM.Shipping ConfirmationConfirm final package size, package weight, destination delivery requirements, and whether custom configurations affect shipment before ordering.Before You Order And UseBefore You Order And UseReview the rated capacity, voltage, ramp configuration, air source, maintenance, and shipping details before selecting the ATL-4SM or ATL-3SM scissor lift.Do Not Exceed Rated CapacityATL-4SM is rated for 4000kg. ATL-3SM is rated for 3000kg. Choose the correct model based on actual vehicle weight.Confirm Wheelbase And Platform SizeCheck vehicle wheelbase, lifting points, and platform length before ordering, especially for larger or long-wheelbase vehicles.Confirm Voltage Before OrderingMotor power options include 380V / 220V / other voltage configurations at 3KW. Confirm the correct voltage for your workshop.Ramp Upgrade Is OptionalMovable approach ramps are available as an optional upgrade. Do not assume they are included in the standard configuration.Air Source RequiredPrepare a suitable air source. The required air source pressure for both models is 0.4-0.6MPa.Regular Maintenance RequiredLubricate and maintain moving joints regularly. Proper maintenance helps extend the life of bearings, joints, cylinders, and seals.What Is In The BoxWhat Is In The BoxThe original product information provides package size and package weight. Because final packing can vary by model, voltage, and optional ramp configuration, confirm final shipping details before ordering.Package Dimensions205 × 115 × 23cmPackage Weight406kgConfiguration CheckConfirm whether the package data applies to your selected ATL-4SM or ATL-3SM configuration before shipment.Packing List ImageNo separate package-content image is provided in the original content. The catalog image is used for model comparison and specifications only.Questions And AnswersThese answers cover model selection, lifting capacity, low initial height, unlock method, movable ramps, voltage, air source pressure, packing information, and pre-order confirmation. What Is The Difference Between ATL-4SM And ATL-3SM? ATL-4SM has a 4000kg lifting capacity, 1250mm lifting height, 1570-2175mm platform length, and 535mm platform width. ATL-3SM has a 3000kg lifting capacity, 1000mm lifting height, 1410-2010mm platform length, and 460mm platform width. ATL-4SM is better for larger or heavier vehicles, while ATL-3SM is better for medium or smaller vehicles and tighter spaces. Which Model Should I Choose For Larger Or Heavier Vehicles? Choose ATL-4SM if you need a higher 4000kg lifting capacity, a higher 1250mm lifting height, and a wider 535mm platform. Always confirm vehicle weight, wheelbase, lifting points, and platform contact area before ordering. What Is The Initial Height Of These Scissor Lifts? Both ATL-4SM and ATL-3SM have a 105mm initial height. This low-profile design allows direct ground installation and helps vehicles with low ground clearance drive on and off more easily. Is Electric Unlocking Included As Standard? No. The standard version features pneumatic unlocking. Electric unlocking is available as an optional customization. Confirm the final unlock configuration with support before ordering. Are Movable Approach Ramps Included? Movable approach ramps can be selected as an upgrade and used as extension plates for more long-wheelbase vehicles. The standard version does not include this feature, so confirm whether you need the ramp upgrade before ordering. What Voltage Should I Choose? Both models support 380V / 220V / other voltage options with 3KW motor power. Confirm your workshop voltage and required configuration before purchase. What Air Source Pressure Is Required? The required air source pressure for both ATL-4SM and ATL-3SM is 0.4-0.6MPa. Confirm your workshop air supply before installation and operation. What Are The Package Size And Weight? The original product content lists package dimensions as 205 × 115 × 23cm and package weight as 406kg. Confirm final packing data before ordering, especially when choosing ATL-3SM, customized voltage, or optional ramp configurations. What Should I Confirm Before Ordering? Confirm the model, vehicle weight, wheelbase, platform size, voltage, pneumatic or electric unlock requirement, movable ramp upgrade, air source pressure, package size, package weight, and delivery requirements before ordering.Warranty And ContactWarranty And ContactFor ATL-4SM / ATL-3SM pricing, model selection, vehicle compatibility, voltage configuration, pneumatic or electric unlocking, movable ramp upgrades, air source requirements, shipping details, and after-sales support, contact AUTOOL Store before ordering.Pre-Sales And Product SupportUse support to confirm whether ATL-4SM or ATL-3SM is suitable for your vehicle type, workshop layout, lifting height requirement, voltage supply, and optional configuration needs.ATL-4SM / ATL-3SM model selectionVehicle weight, wheelbase, and platform compatibility confirmation380V / 220V / other voltage configuration supportPneumatic unlocking and optional electric unlocking confirmationMovable approach ramp upgrade confirmation0.4-0.6MPa air source pressure confirmationPackage size, package weight, and shipping requirement confirmationWarranty, accessory, and after-sales support Inquiry Price WhatsApp Support Email Support [email protected] WhatsApp 86 189 2647 7404
