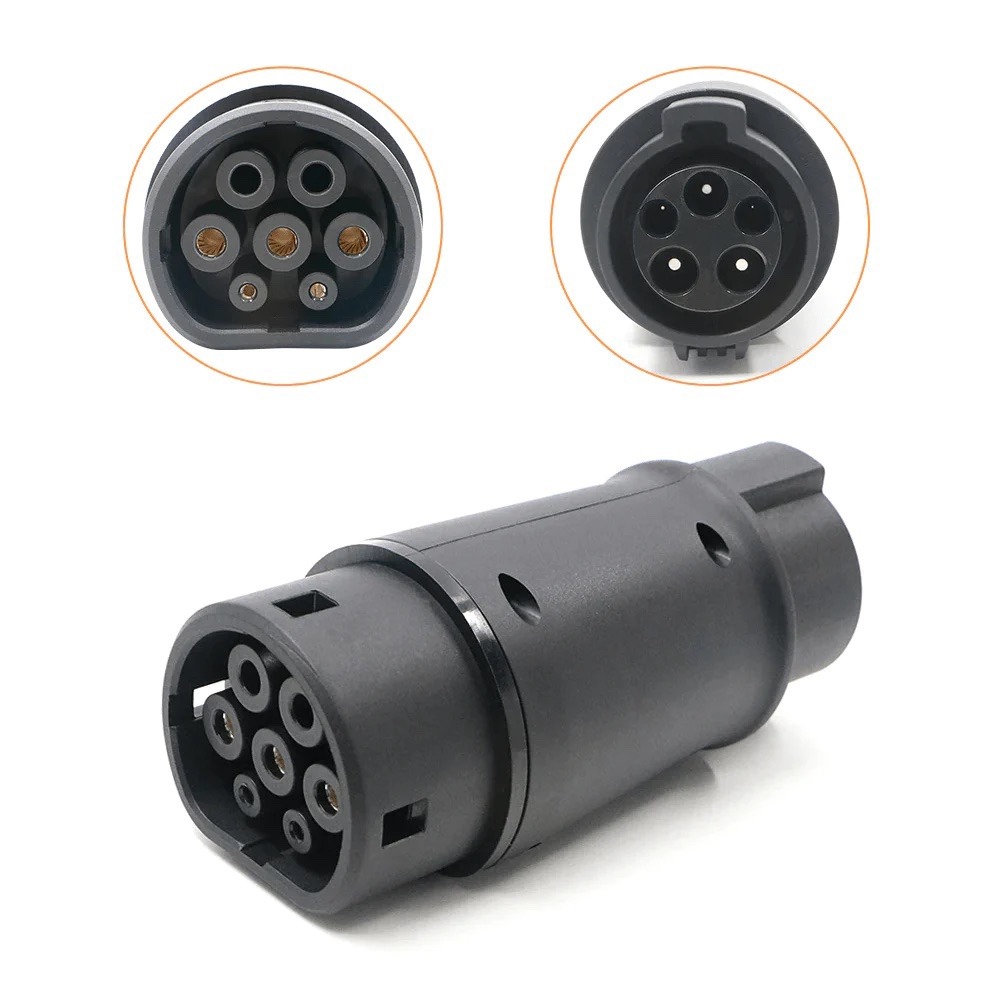

32A Type 2 to Type 1 EV Adapter

Ideal for families with 2 EVs or plug-in hybrids with different connector types. Protection class: IP 54 Current: 32A/7.2KW/single phase Working temperature: -30℃～ 50℃ Rated voltage: 250V AC Plastic enclosure fire rating: UL94 V – 0 Product insertion force: 80 N 1. Mechanical life: no-load plugging and unplugging Greater than 10000 times 2. Insertion force during coupling: Greater than 45N Less than 80N Electrical performance: 1. Rated working current: 16A or 32A 2. Working voltage: 110V~250V 3. Insulation resistance: Greater than 1000MΩ (DC500V) 4. Terminal temperature rise: Less than 50K 5. Withstand voltage: 2000V 6. Contact resistance: 0.5mΩ Max Ambient temperature: 1. Working environment temperature: -30℃~ 50℃
