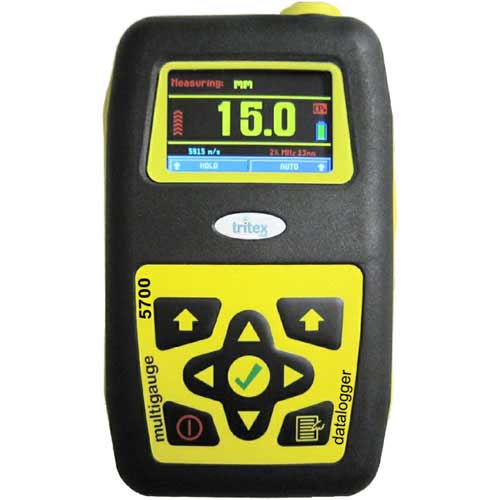

TRITEX Multigauge 5700 Datalogger Wall Thickness Meter

Description The Multigauge 5700 Datalogger wall thickness meter has all the same features of the Multigauge 5600 but with the added advantage of having the capability to store measurements within the gauge. Templates can be set up to store readings in a grid, string or combination of both, allowing complete versatility for all applications. Data transfer between the gauge and PC is done using a wireless RF transceiver. Intuitive menus ensure setup is very easy whilst the bright full colour LCD display can be used in all light conditions. Dedicated software, called Communicator, acts as the interface between the gauge and the PC. The gauge uses multiple echo to ignore coatings up to 6mm thick. An optional leather case is also available for extra protection.  KIT CONTENTS: Multigauge 5700 Datalogger wall thickness meter, probe, probe lead, RF transceiver, Communicator software, spare membranes, membrane oil, ultrasonic gel, 15mm test block, membrane key, batteries, manual, calibration certificate, carry case. Options: Protective leather case. SPECIFICATION: Sound Velocity Range: From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs) Probes: Single crystal soft faced – 2.25 MHz, 3.5 MHz & 5 MHz Measurement Range: 1 – 250 mm (0.04” – 10”) depending on probe used Probe Sizes: 6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”) Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”) Accuracy: ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”) Display: Colour LCD Storage Capacity: 32 Mb Data Transmission: Wireless RF Coatings Range: Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus )* Batteries: 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD Battery Life: Up to 50 hours continuous use using alkaline batteries Gauge Dimensions: 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”) Gauge Weight: 325 g (11.5 ounces) including batteries Environmental: Case rated to IP65, RoHS and WEEE compliant Operating Temp: -10°C to 50°C (14°F to 122°F) Storage Temp: -10°C to 60°C (14°F to 140°F) Download PDF brochure
